Infrared switch max. 72W 10mm with 1 sensor

IR Switch/Dimmer 10mm from the German quality brand Hera
Contactless IR Switch/Dimmer for furniture 10mm 72W with 1 x sensor

Description:

Motion-controlled IR switch for connecting LED lights with 24V, power cable 0.2m with LED 24 plug, sensor cable 0.2m with 12-way distributor, sensor cable 2m, for mounting in a 10mm cavity, the switch allows you to choose between the following two functions: function 1 (as supplied): the first time the switch detects movement, the light turns on, and the second time it turns it off again, function 2: when the door is opened, the light automatically turns on – and when the door is closed, the light turns off, with 2 sensors, the light turns on as soon as a door is opened.

Special features:

• Connection to LED transformer DC 24V
• movement operates switch or movement of door operates switch
• function 1 (as supplied): the first time the switch detects motion the light turns on and the second time it turns off again

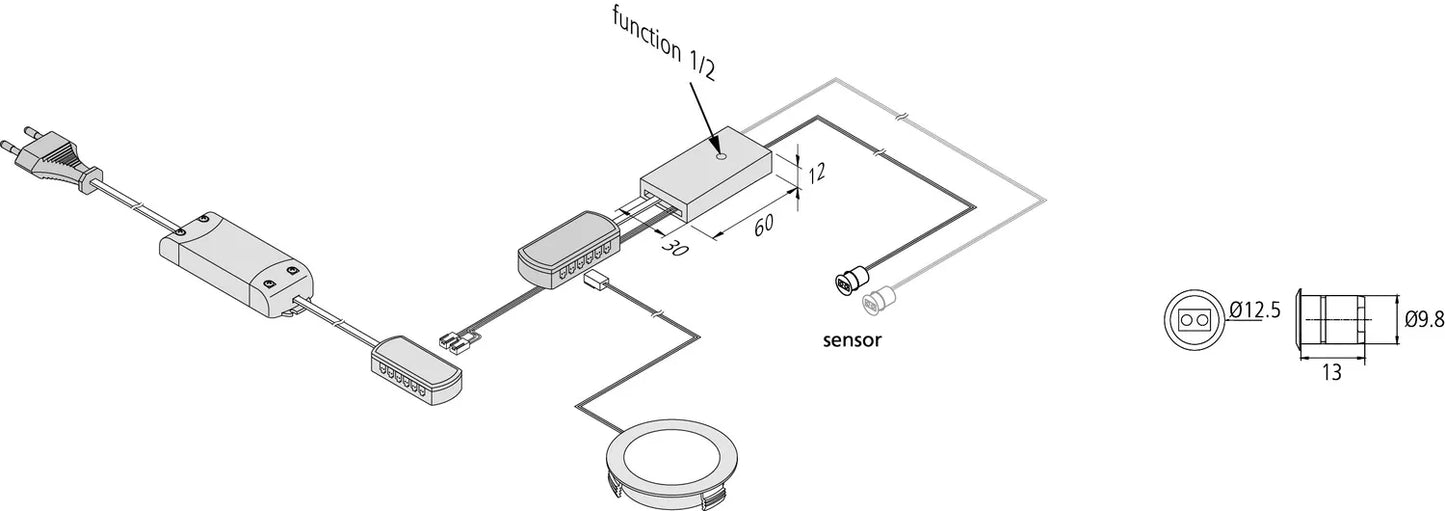

• Function 2 (short keystroke, see drawing): when the door is opened, the light switches on automatically – when the door is closed, it switches off again (with 2 sensors, the light switches on as soon as a door is opened)
• the brightness adjusted in function 1 is retained after switching to function 2
  the connected LED luminaire is dimmable when the human hand or an object remains within the detection range of the IR sensor (only in function 1)
• suitable for switching 24V LED luminaires
• for 10 mm drill holes
• the distance between the closed door and the IR sensor must be a maximum of 50 mm (depending on the surface)
• with memory function (after disconnecting from the mains, the previous dimming state is restored)
